ZOTAC GAMING ALLOY MATX Case Black - Gold

ZOTAC GAMING ALLOY MATX Case Black - Gold
ZC-MAB3F-01

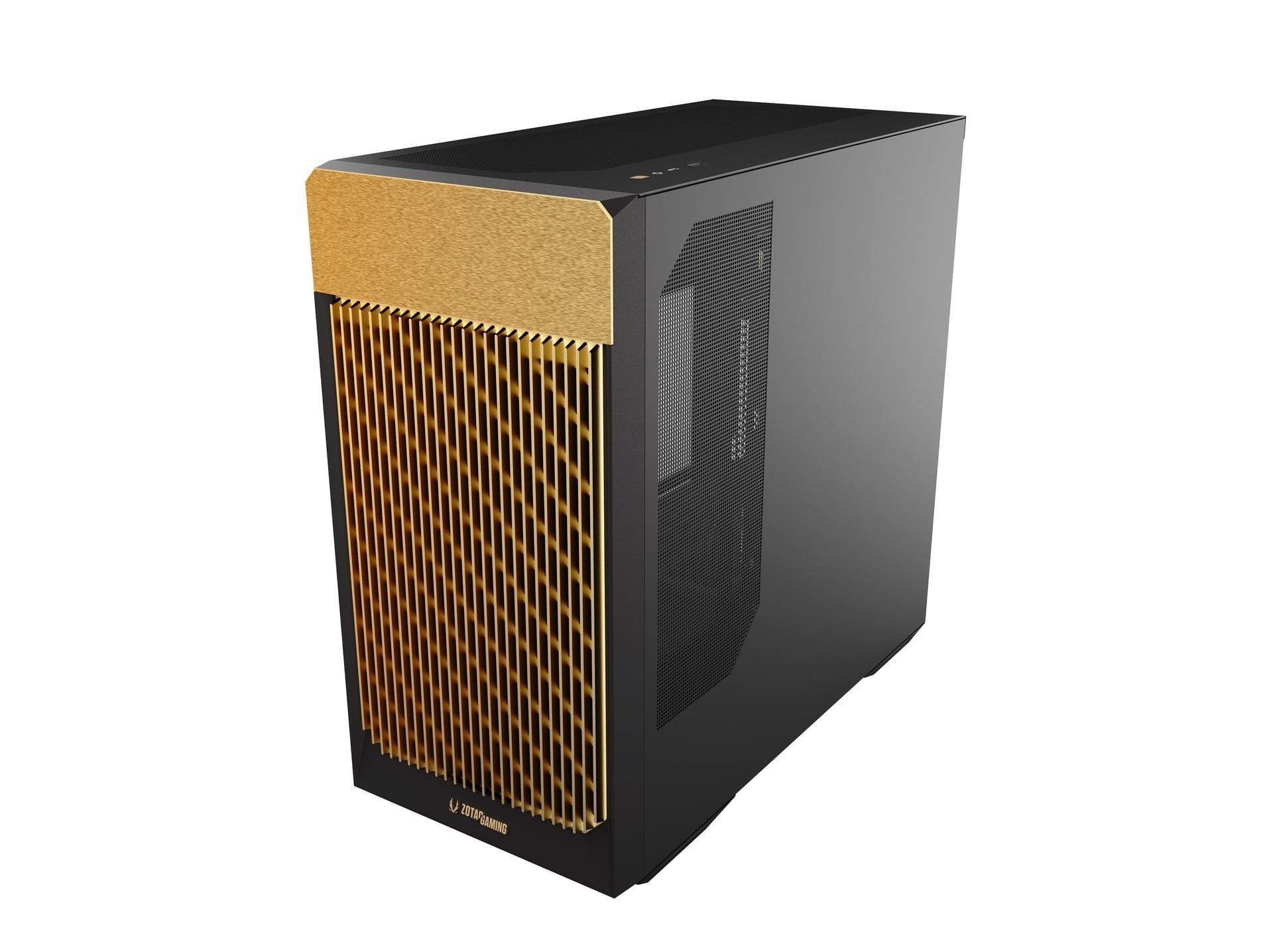

 The ZOTAC GAMING ALLOY mATX Computer Case is ZOTAC’s first ever computer case that is designed with the DIY enthusiast in mind. With a solid airflow design and the potential for up to 10 fans to be installed, an mATX form factor that fits most flagship GPUs, quick detachable panels for easy maintainance and more, the ALLOY case effortlessly adds a touch of elegance and performance to any gaming station.

Key Features:

- Elegant Design: Appearance tailored for ZOTAC GAMING's latest flagship GPUs
- Effortless Assembly: Quick-detachable panels, toolless PCIe screw design, Push-to-detach dust filter
- Three 120mm PWM Fans included, supports up to 10 Fans or up to one 360mm liquid-cooling Radiator
- Airflow optimized with dedicated air-guide ramp for GPU cooling
- Wide Compatibility, up to 412mm GPU clearance

CASE SPECIFICATIONS
Form Factor - mATX Tower
Materials - Steel, Aluminum, ABS, Tempered Glass
Access& Controls
Power, USB 3.2 Gen 1 x 1, USB 3.2 Gen 2 Type-C x1, Headphone/Mic Combo Jack
Dimensions - 458 x 222 x 433 mm (LxWxH)
Compatibility & Clearances
Motherboard - Micro-ATX/mini ITX Form Factor
Motherboards with back connectors not compatible
Max. PSU Length - ≤180mm (ATX Form Factor)
Max. CPU Cooler Height - ≤170mm
Max. GPU Length - ≤412mm
Radiator
Top: 120/140/240/280/360mm
Rear: 120mm
PCIe Slots/Drive Bays
PCIe Slots - 5
3.5” - 1
2.5” - 1
Cooling - Front 3x 120mm
Top - 3x 120mm/2x 140mm
Midplate - 2x 120mm
PSU Shroud - 1x 120mm
Rear - 1x 120mm
Dust Filter
Front, Bottom
FAN SPECIFICATIONS
Fan Type - PWM
Fan Speed - 1350 ~ 1450 RPM
Cable Length 550mm
